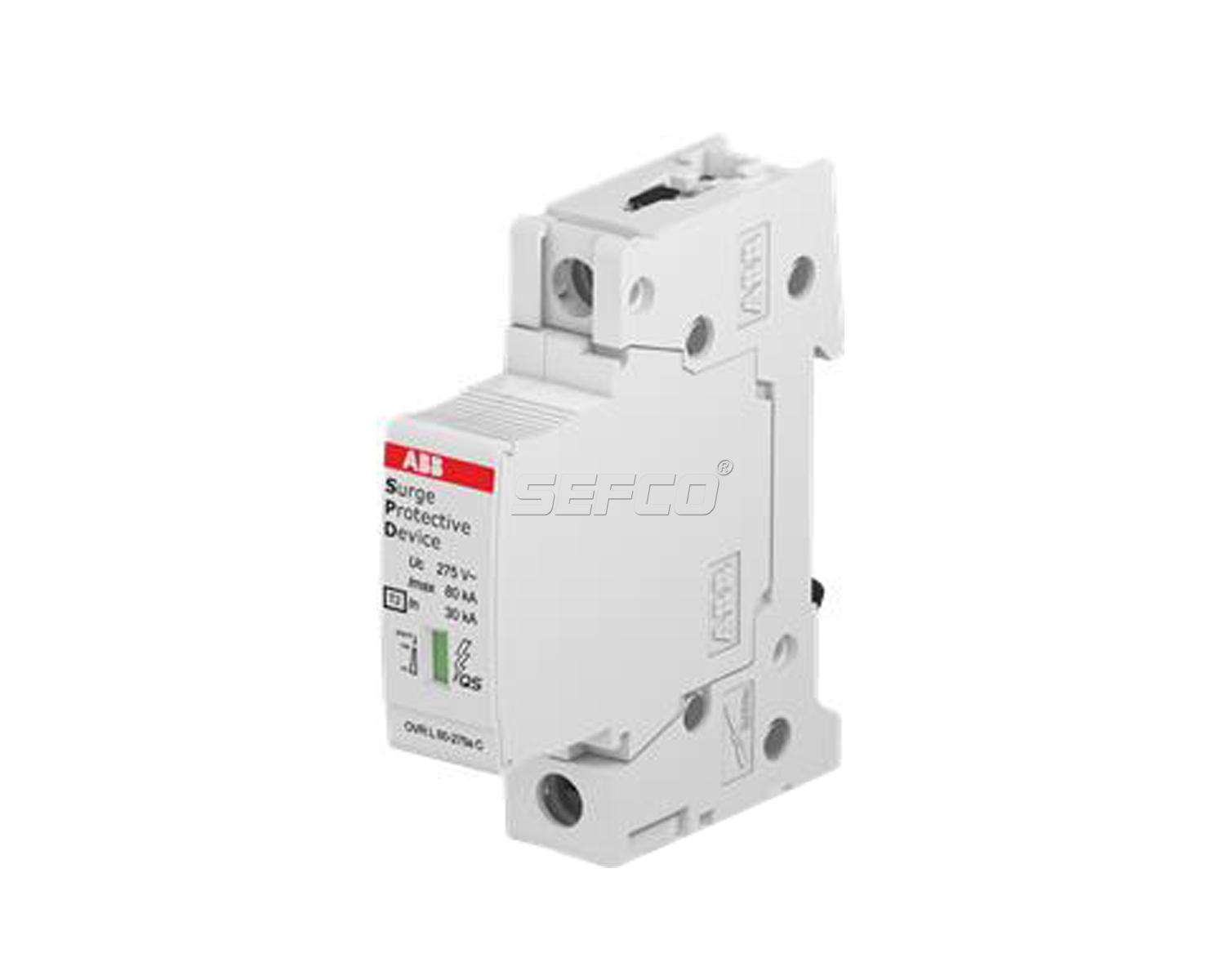

OVR Type 2 surge protective devices – Single pole – Pluggable
Extended Product Type : OVR T2 80-275s P QS
Product ID : 2CTB815708R1200
Standards : IEC 61643-11 / EN 61643-11
Product Main Type : T2
Nominal AC Voltage of the System (Uo) : 230 V
Maximum Continuous Operating Voltage (Uc) : 275 V
Nominal Discharge Current In(8/20µs) : 30 kA
Maximum Discharge Current Imax(8/20µs) : 80 kA
Maximum Impulse Current Iimp(10/350µs) : 6.25 kA
Voltage Protection Level (Up) at In : 1.8 kV
– Pluggable cartridge (P)
– Integrated QuickSafe technology (QS)
– Safety Reserve (s)
