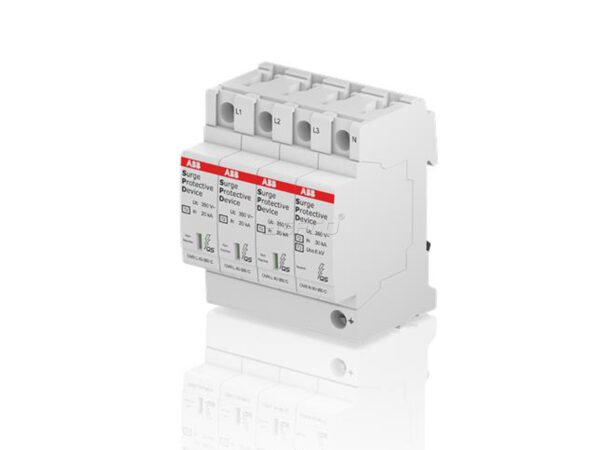

OVR T2 3N 40-350 P QS

Brand:

  • ABB
ขอใบเสนอราคา

OVR Type 2 surge protective devices – TNS – 3Ph N

Extended Product Type :    OVR T2 3N 40-350 P QS

Product ID :   2CTB803983R1100

Standards :    IEC 61643-11 / EN 61643-11

Product Main Type :   T2

Nominal AC Voltage of the System (Uo) :     230 / 400 V

Maximum Continuous Operating Voltage (Uc) :   350 V

Nominal  Discharge Current  In(8/20µs) :    20 kA

Maximum  Discharge Current  Imax(8/20µs) :    40 kA

Maximum Impulse Current Iimp(10/350µs) :    2 kA

Voltage Protection Level (Up) at In (L-N / N-PE / L-PE)  :    1.5 / 1.4 / 1.7 kV

   – Pluggable cartridge (P)

   – Integrated QuickSafe technology (QS)

   – State indicator




Download Datasheet
