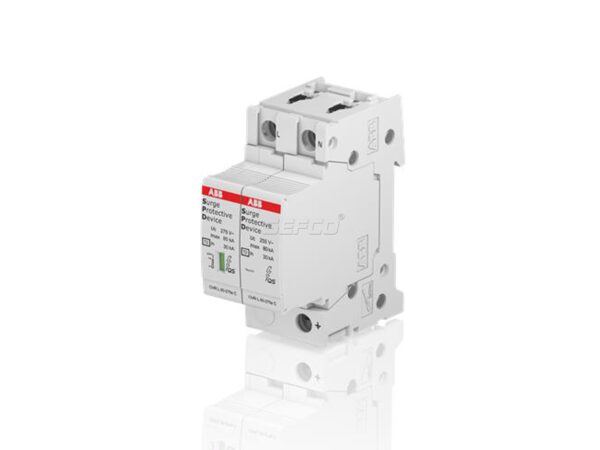

OVR T2 1N 80-275s P QS

Brand:

  • ABB
ขอใบเสนอราคา

OVR Type 2 surge protective devices – TNS – 1Ph N

Extended Product Type :    OVR T2 1N 80-275s P QS

Product ID :  2CTB815708R1400

Standards :   IEC 61643-11 / EN 61643-11

Product Main Type :   T2

Nominal AC Voltage of the System (Uo) :      230 / 400 V

Maximum Continuous Operating Voltage (Uc) :   275 V

Nominal  Discharge Current  In(8/20µs) :    30 kA

Maximum  Discharge Current  Imax(8/20µs) :    80 kA

Maximum Impulse Current Iimp(10/350µs) :    6.25 kA

Voltage Protection Level (Up) at In (L-N / N-PE / L-PE)  :    1.6 / 1 / 1.8 kV

   – Pluggable cartridge (P)

   – Integrated QuickSafe technology (QS)

    – State indicator

    – Safety reserve (s)


Download Datasheet
