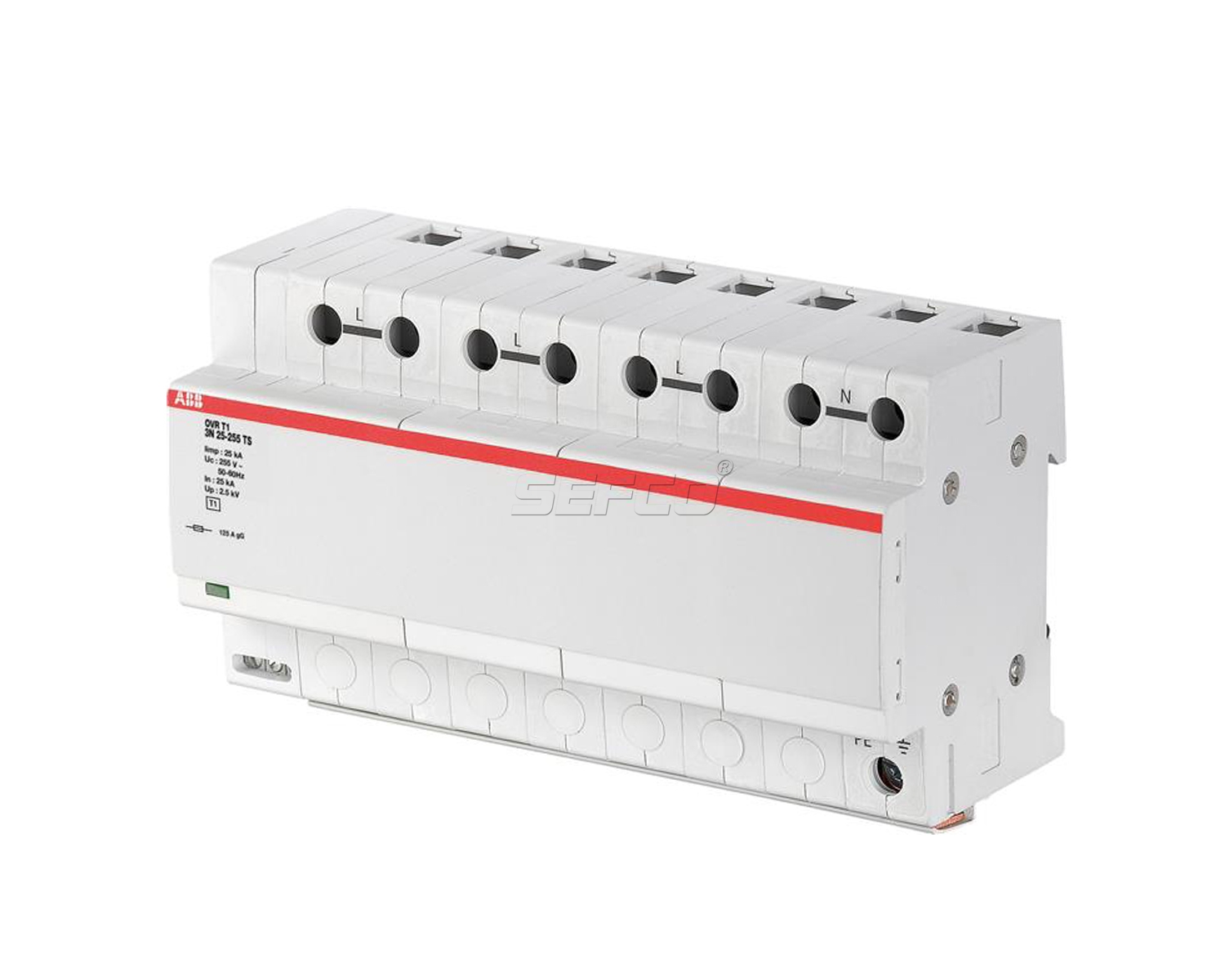

OVR Type1 Surge Protection Devices – TNS -TT – 230 V – 3 Ph N

Extended Product Type:    OVR T1 3N 25-255 TS

Product ID:   2CTB815101R0700

Standards:   IEC 61643-1 / EN 61643-11

Product Main Type:   T1

Nominal AC Voltage of the System (Uo):      230 / 400 V

Nominal  Discharge Current  In(8/20µs) :    25 kA

Maximum  Discharge Current  Imax(8/20µs) :    60 kA

Maximum Impulse Current  Iimp(10/350 µs) :   25 kA

Maximum Impulse Current  Tot. Iimp(10/350 µs) :   100 kA

with auxiluary contact (TS)
