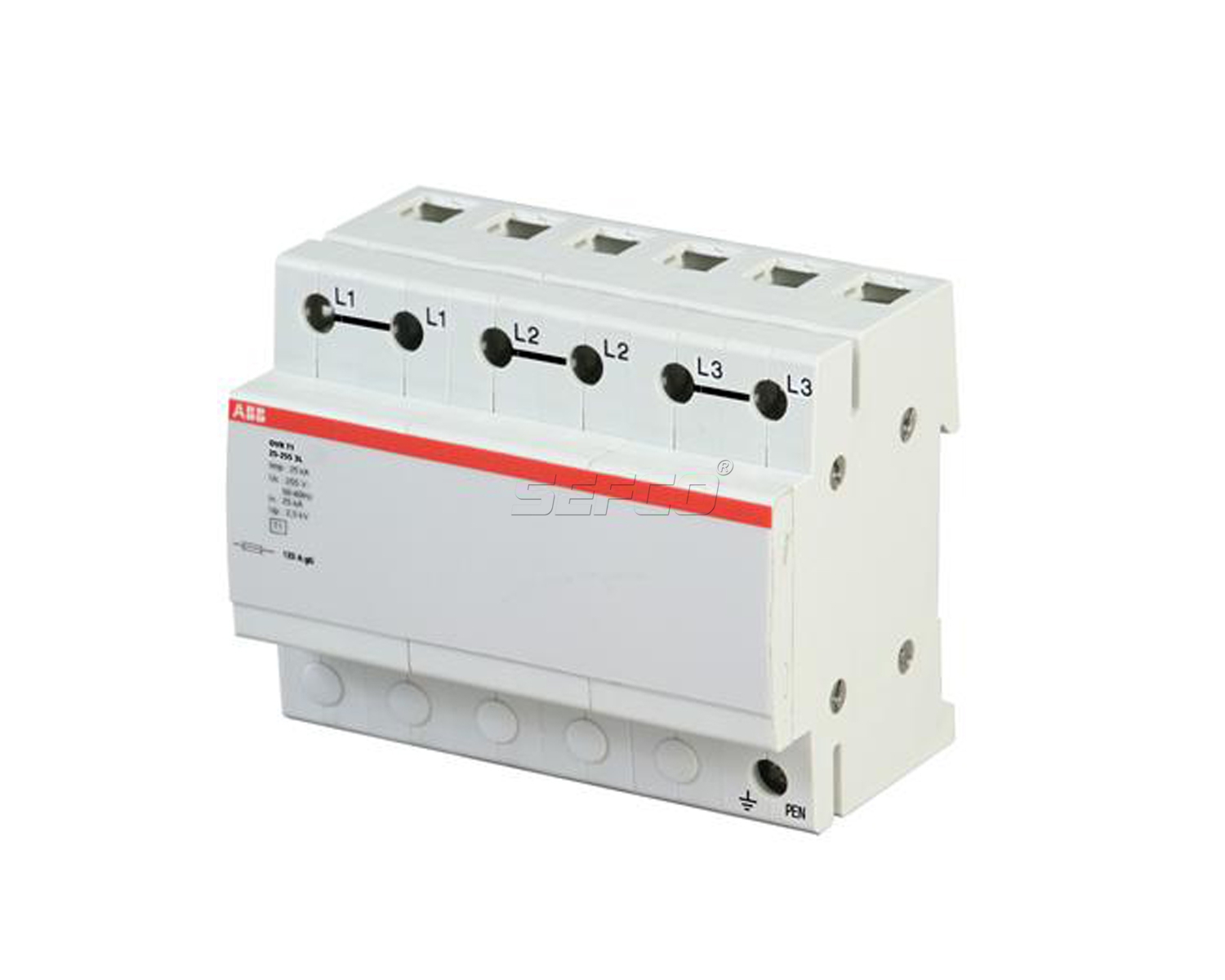

OVR Type 1 2 Surge Protection Devices – TNC – 230 and 400 V

Extended Product Type :    OVR T1 2 3L 25-255 TS

Product ID :   2CTB815101R0800

Standards :   IEC 61643-1 / EN 61643-11

Product Main Type :   T1

Nominal AC Voltage of the System (Uo) :      230 / 400 V

Maximum Continuous Operating Voltage (U_c) :   255 V

Nominal  Discharge Current  In(8/20µs) :    25 kA

Maximum  Discharge Current  Imax(8/20µs) :    60 kA

Maximum Impulse Current  Iimp(10/350 µs) :   25 kA

Maximum Impulse Current  Itotal(10/350 µs) :   75 kA

with auxiluary contact (TS)

Download Datasheet
