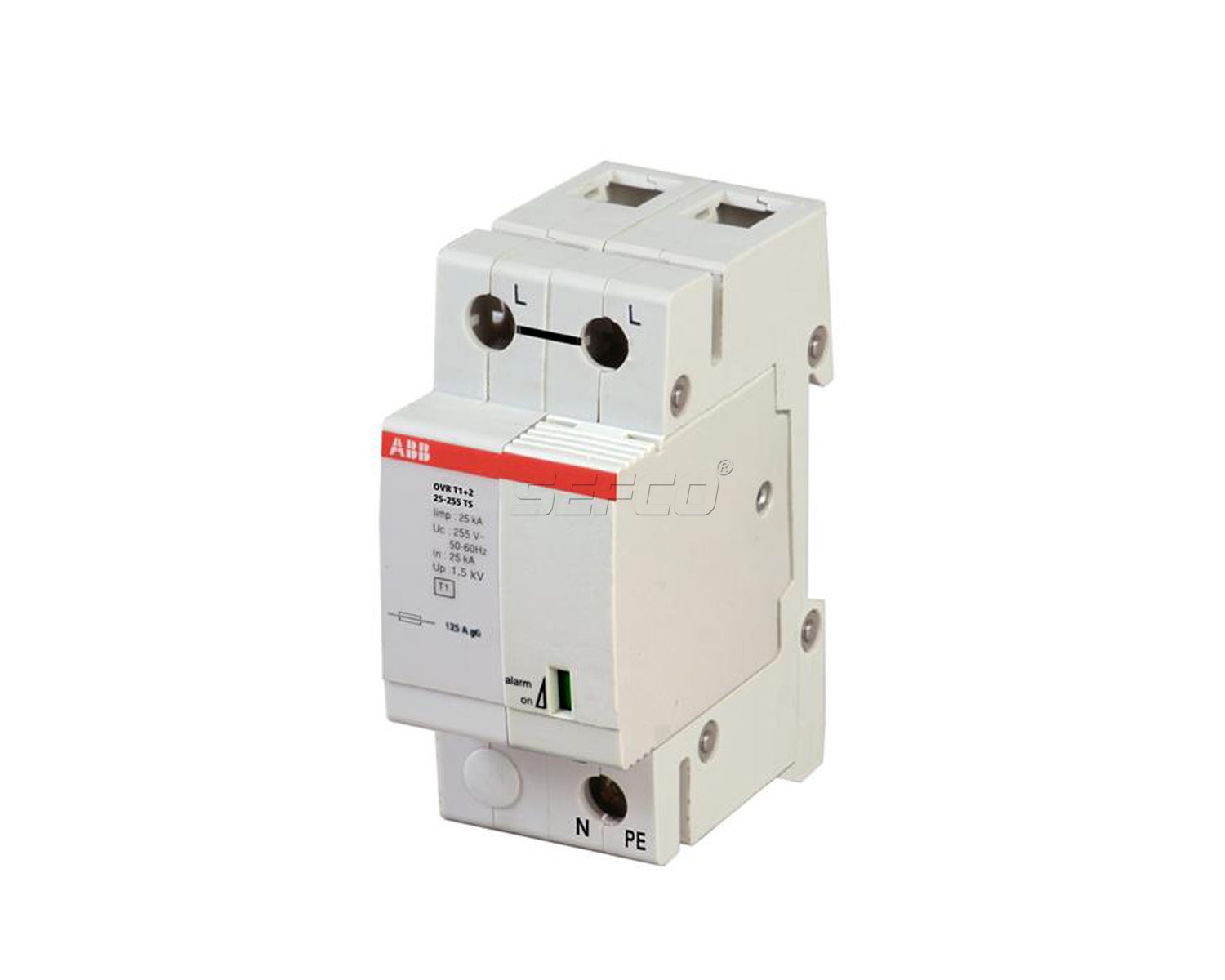

OVR Type 1 2 Surge Protection Devices – Single Pole

Extended Product Type:    OVR T1 2 25-255 TS

Product ID:    2CTB815101R0300

Standards:   IEC 61643-1 / EN 61643-11

Product Main Type:   T1 2

Nominal AC Voltage of the System (Uo) :      230 / 400 V

Maximum Continuous Operating Voltage (Uc) :   255 V

Nominal  Discharge Current  In(8/20µs) :    25 kA

Maximum  Discharge Current  Imax(8/20µs) :    60 kA

Maximum Impulse Current  Iimp(10/350 µs) :   25 kA

with auxiluary contact (TS)

Download Datasheet
