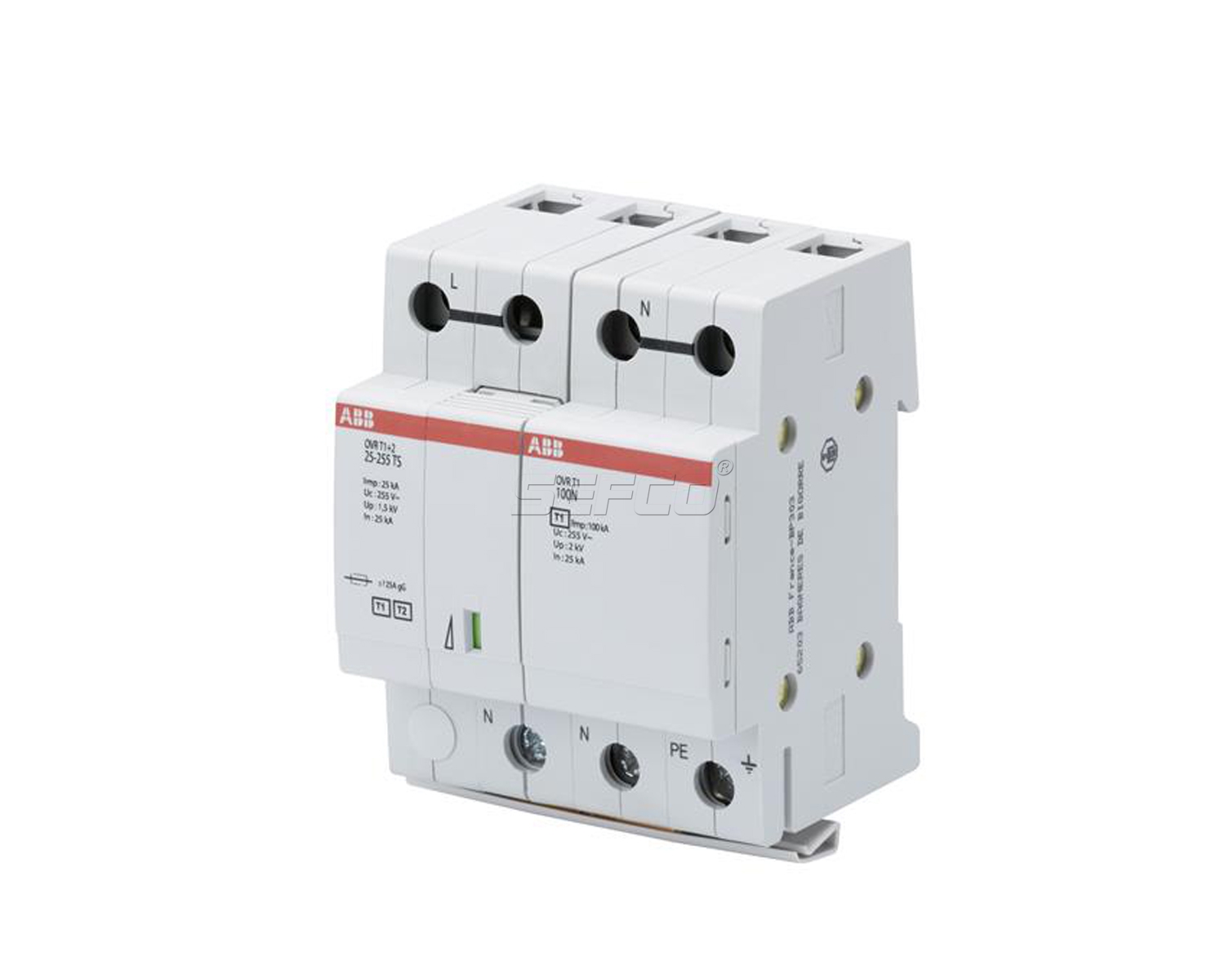

OVR Type 1 2 Surge Protection Devices – TNS – TT – 230 and 400 V – 1Ph N
Extended Product Type : OVR T1 2 1N 25-255 TS
Product ID : 2CTB815101R4400
Standards : IEC 61643-1 / EN 61643-11
Product Main Type : T1 2
Nominal AC Voltage of the System (Uo) : 230 / 400 V
Maximum Continuous Operating Voltage (Uc) : 255 V
Nominal Discharge Current In(8/20µs) : 25 kA
Maximum Discharge Current Imax(8/20µs) : 60 kA
Maximum Impulse Current Iimp(10/350 µs) : 25 kA
Maximum Impulse Current Itotal(10/350 µs) : 50 kA
with auxiluary contact (TS)
